Saint Philip the Apostle Catholic Church (San Francisco, CA) Lighting Study



Results of interior lighting improvements

images are optimized for a monitor resolution of 1024 x 768 x 16 million colors


Lighting improvements include:

·        New high ceiling PAR38 recessed downlights over  pew areas
·        New  low ceiling PAR38 recessed downlights over pew areas
·        New high ceiling directional PAR38 recessed downlights  for  the alter, lectern & alter chair
·        New  spot lights for the crucifix within the canopy
·        New dimmable indirect fluorescent cove lighting
·        New dimmable fluorescent  indirect  alter dome lighting above crucifix canopy
·        New Stations of the Cross recessed accent lights
·        New side alter (left & right) recessed downlights
·        New recessed accent lights for the side alter (left & right) statuary

All shown footcandle values reflect a 20% light loss factor





View from rear of church towards alter

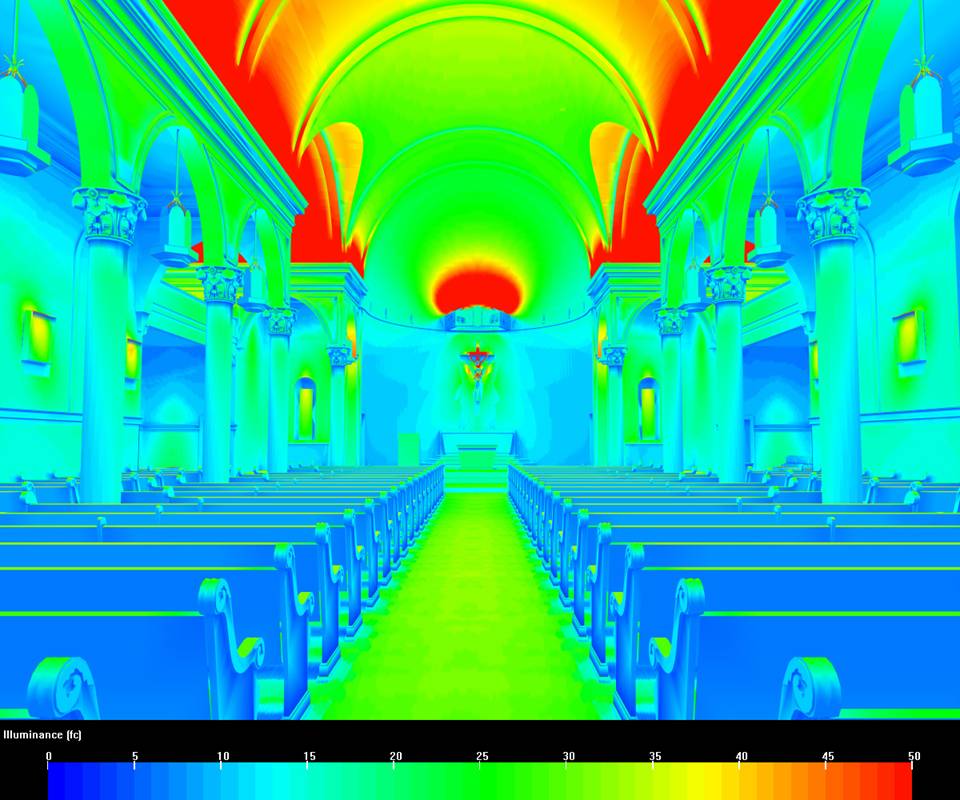

False Color View from rear of church towards alter

Image shows illuminance keyed to foot candle scale

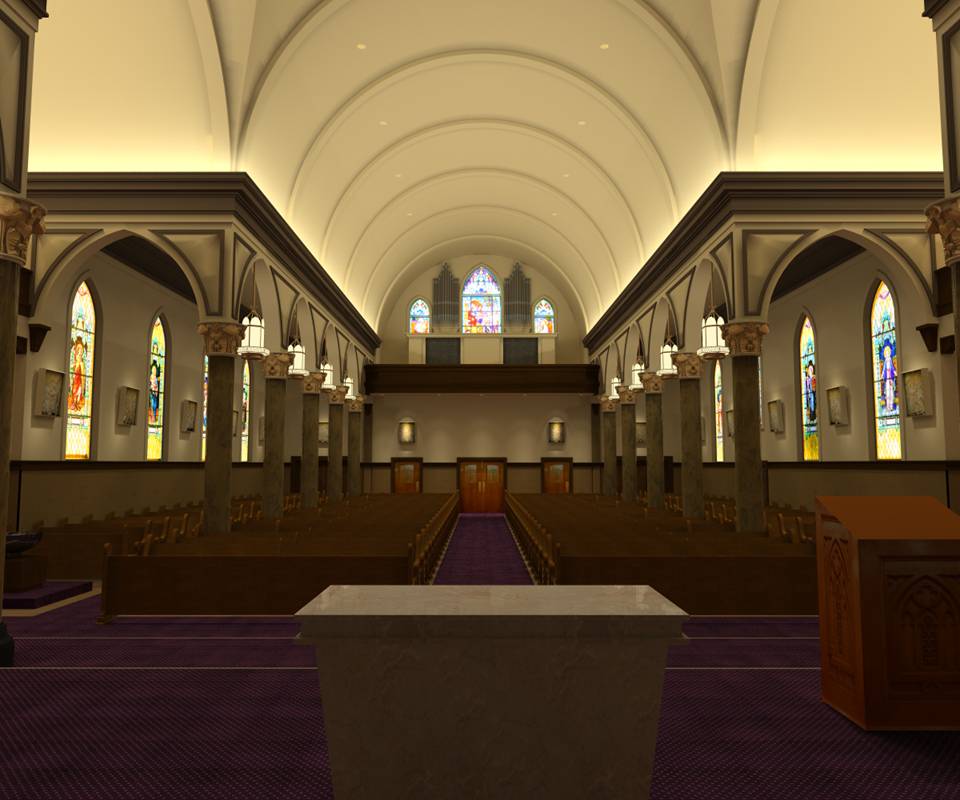

View from alter towards rear of church

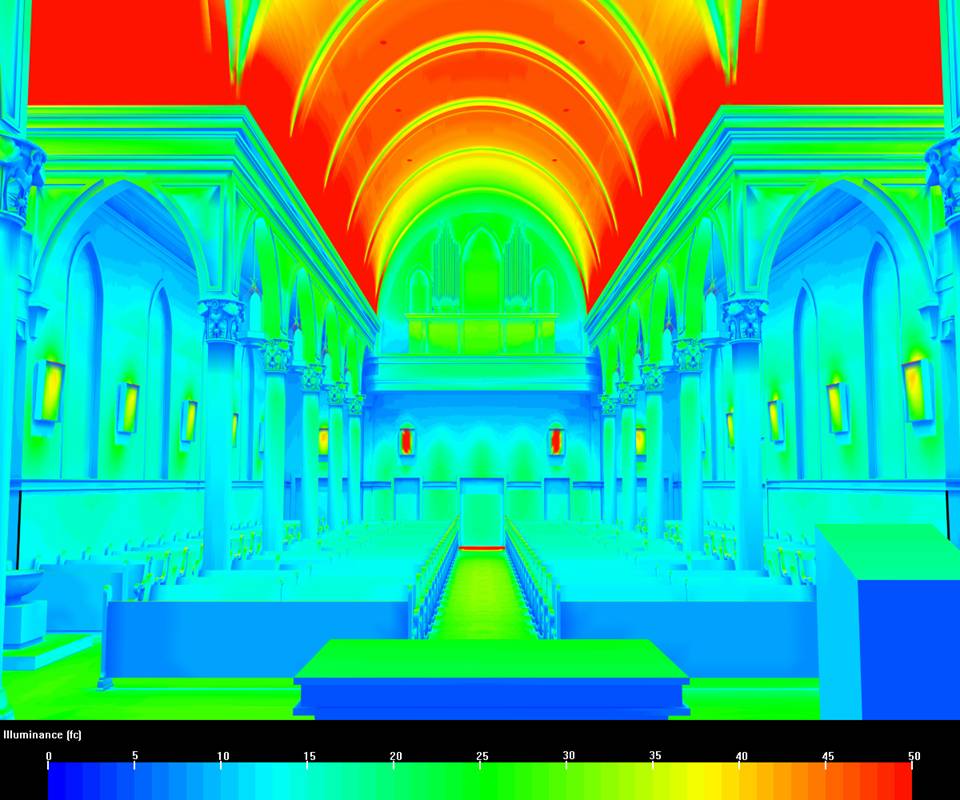

False Color View from alter towards rear of church

Image shows illuminance keyed to foot candle scale



View towards right rear side

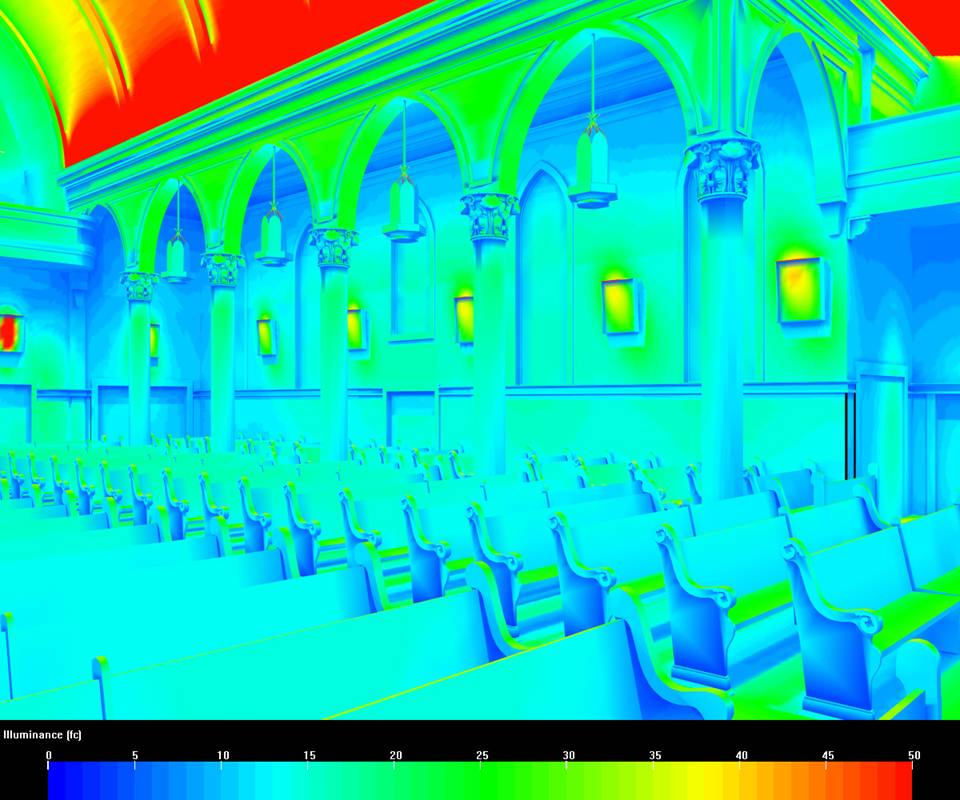

False Color View towards right rear side

Image shows illuminance keyed to foot candle scale

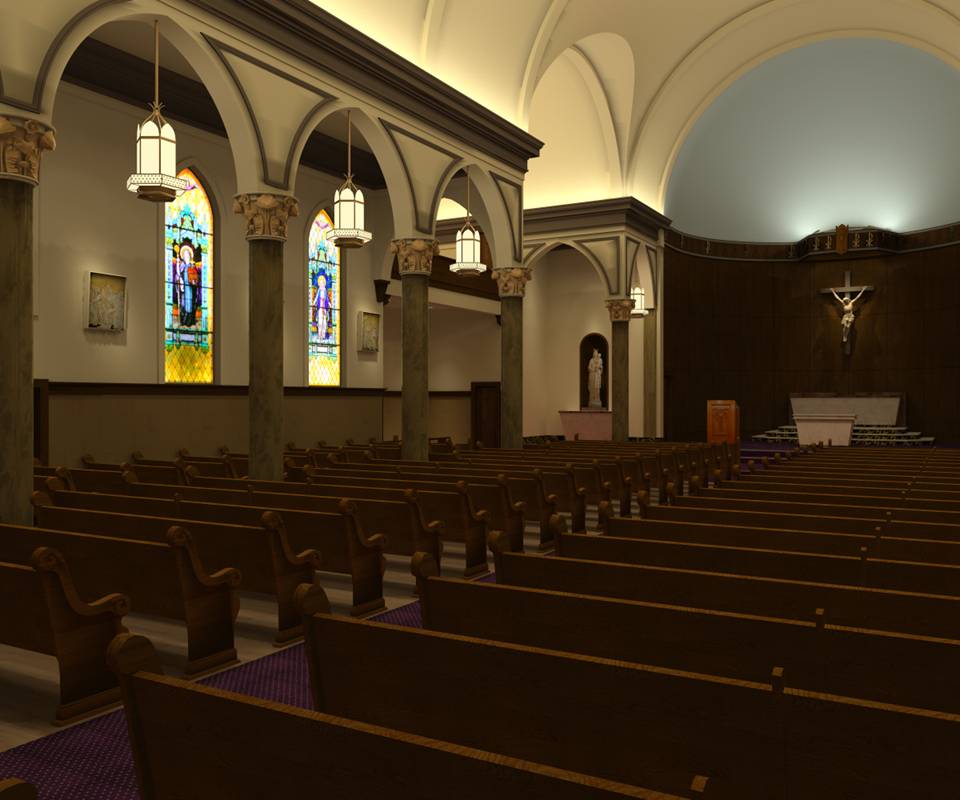

View from back of sanctuary towards front right

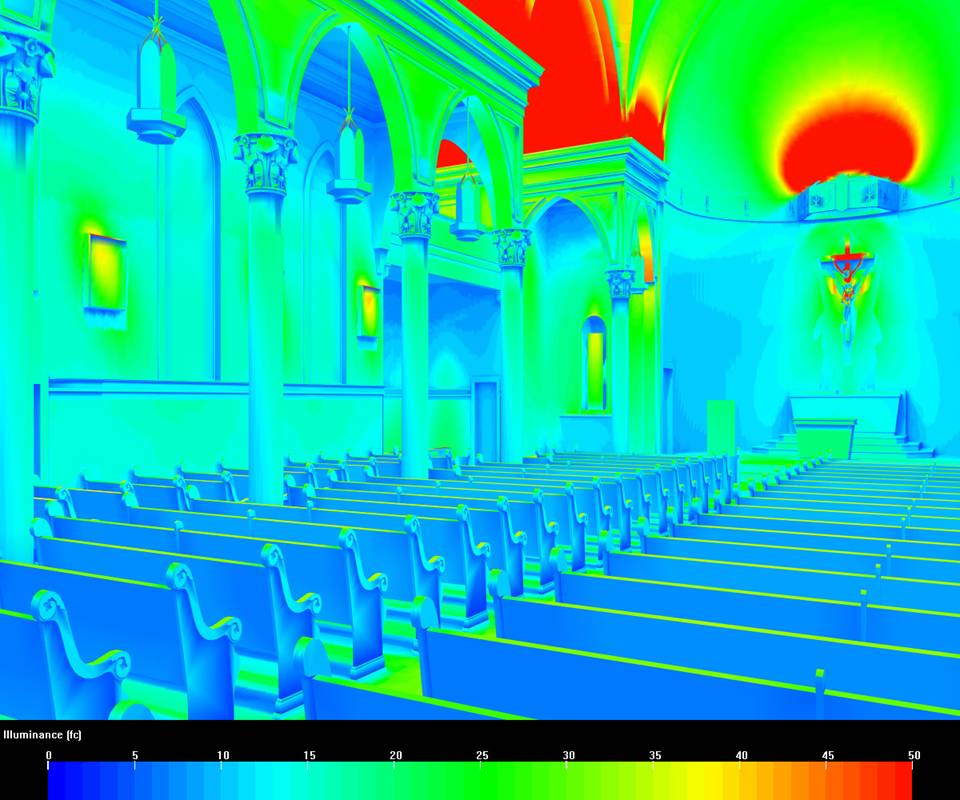

False Color View from back of sanctuary towards front right

 Image shows illuminance keyed to foot candle scale

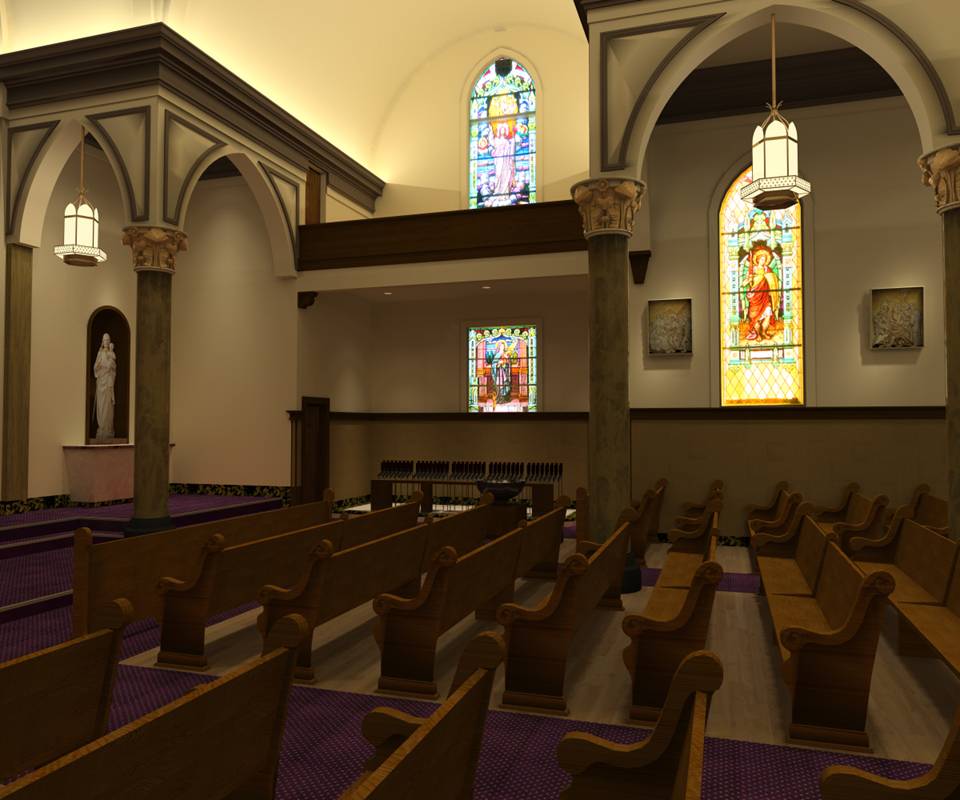

View toward front left Baptismal Font area

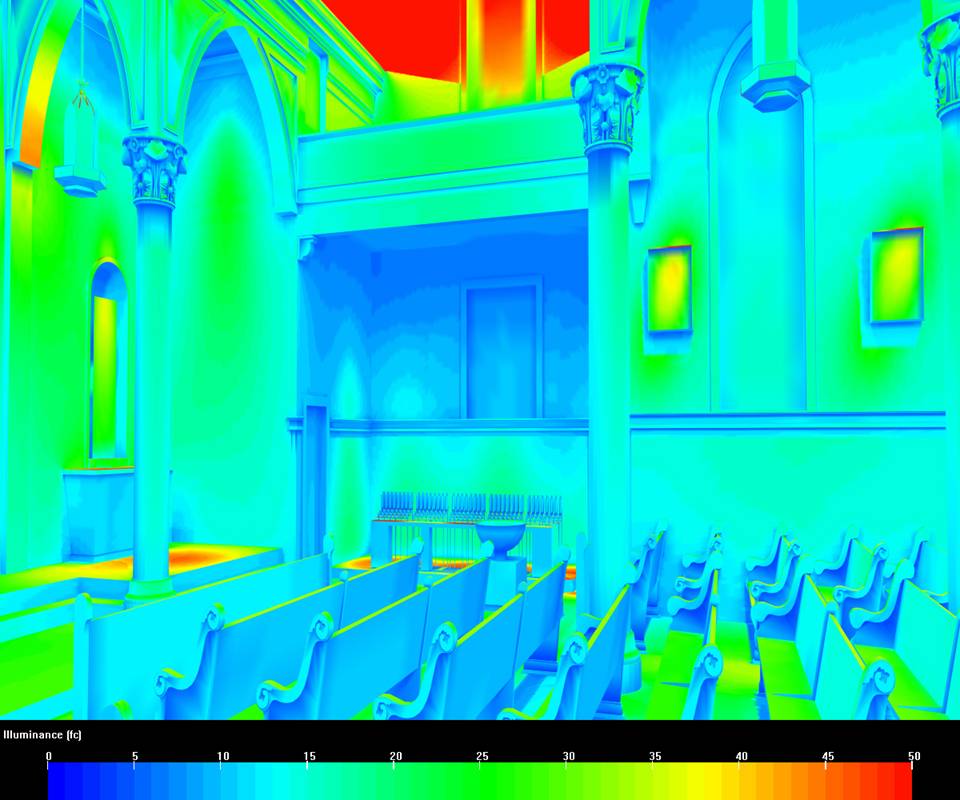

False Color View toward front left Baptismal Font area

Image shows illuminance keyed to foot candle scale

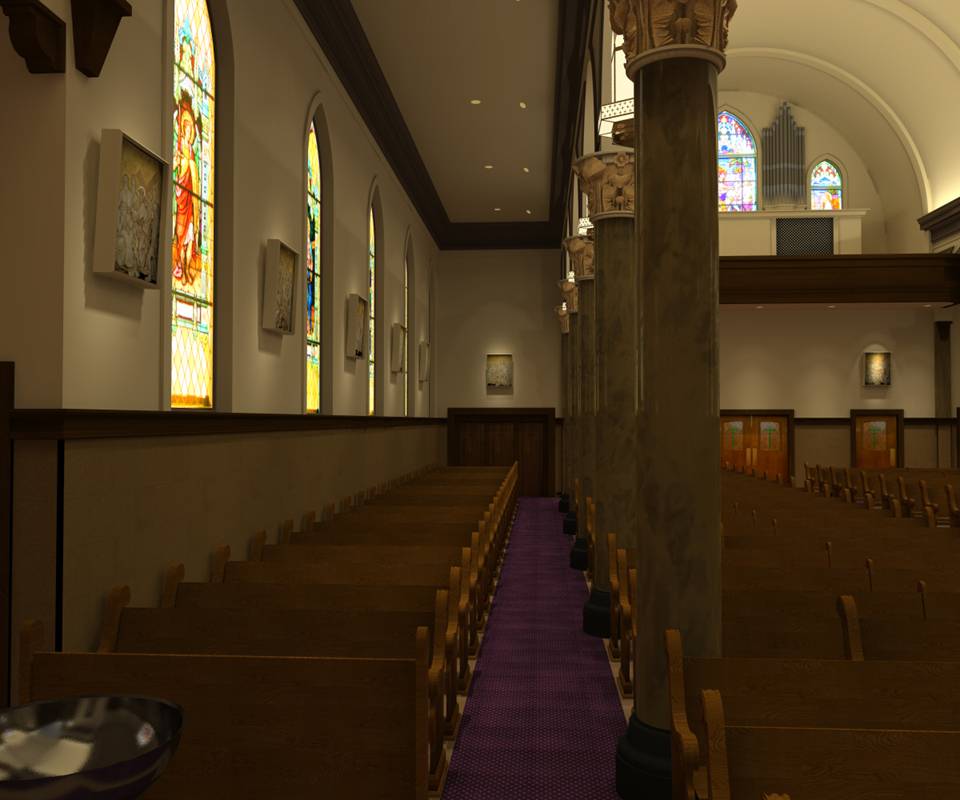

View under left low ceiling towards rear of sanctuary

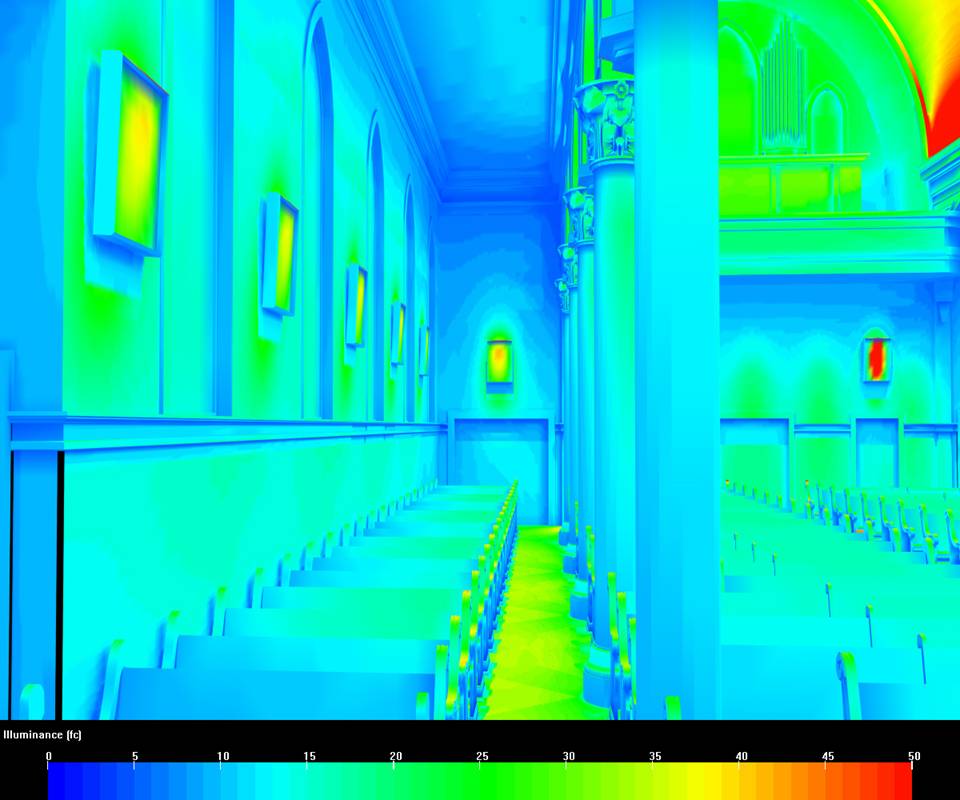

False Color View under left low ceiling towards rear of sanctuary

Image shows illuminance keyed to foot candle scale

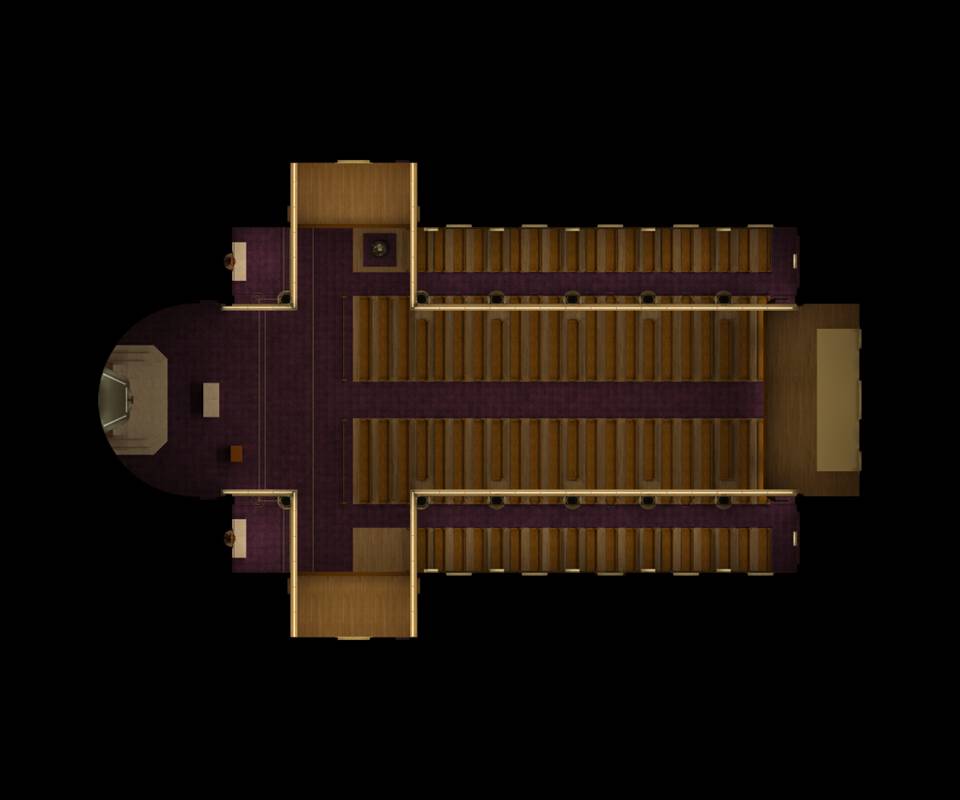

Plan (birdseye) View

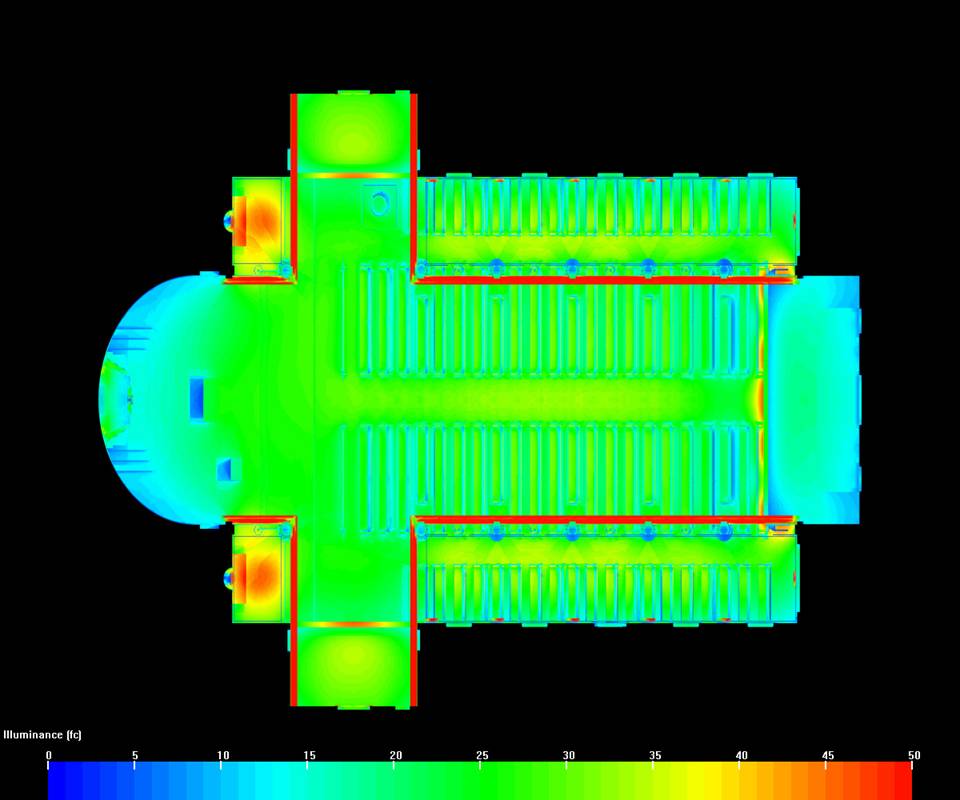

False Color Plan (birdseye) View

Image shows illuminance keyed to foot candle scale

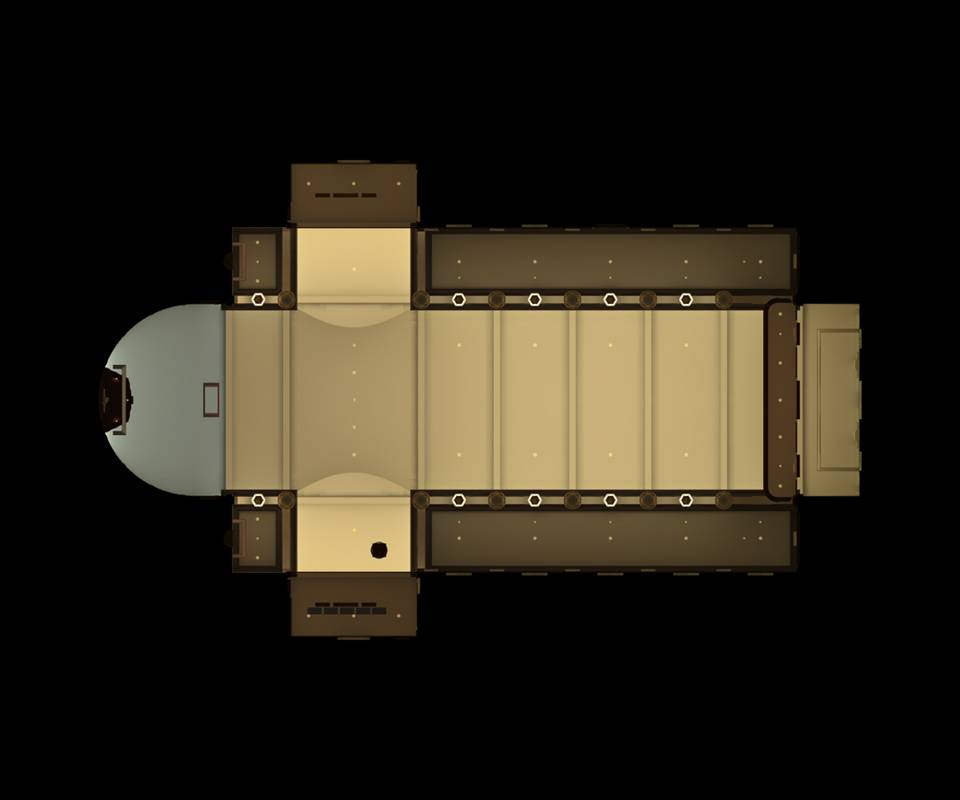

Reflected Ceiling View

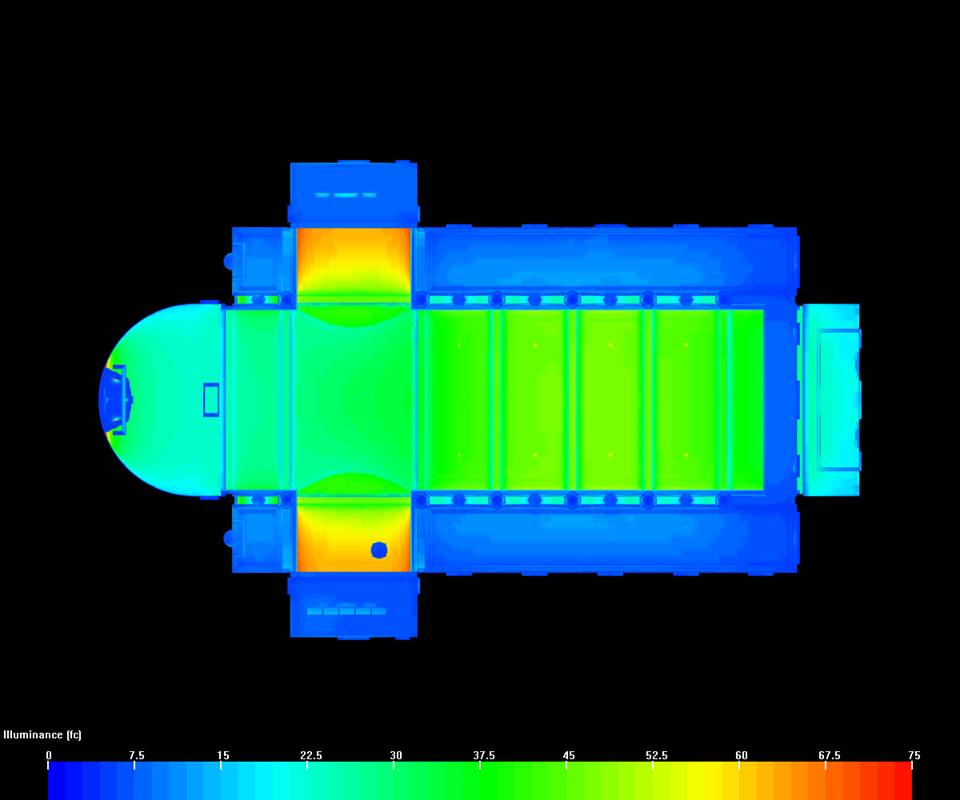

False Color Reflected Ceiling View

Image shows illuminance keyed to foot candle scale
