Saint Emydius (San Francisco, CA) Lighting Study



Results of interior lighting improvements

images are optimized for a monitor resolution of 1024 x 768 x 16 million colors


Lighting improvements include:

·        New high ceiling PAR38 downlights over  pew areas
·        New  low ceiling PAR38 downlights over pew areas
·        New high ceiling directional PAR38 downlights  for  the alter & side alter areas
·        New  spot lights for the crucifix within the canopy
·        New dimmable fluorescent cove lighting. Output calculated at 50% of initial lumens
·        New Stations of the Cross up lights
·        New Spot lights for tabernacle & bible stand

All shown footcandle values reflect a 20% light loss factor






View from rear of church towards alter



False Color View from rear of church towards alter

Image shows illuminance keyed to foot candle scale



View from alter towards rear of church



False Color View from alter towards rear of church

Image shows illuminance keyed to foot candle scale

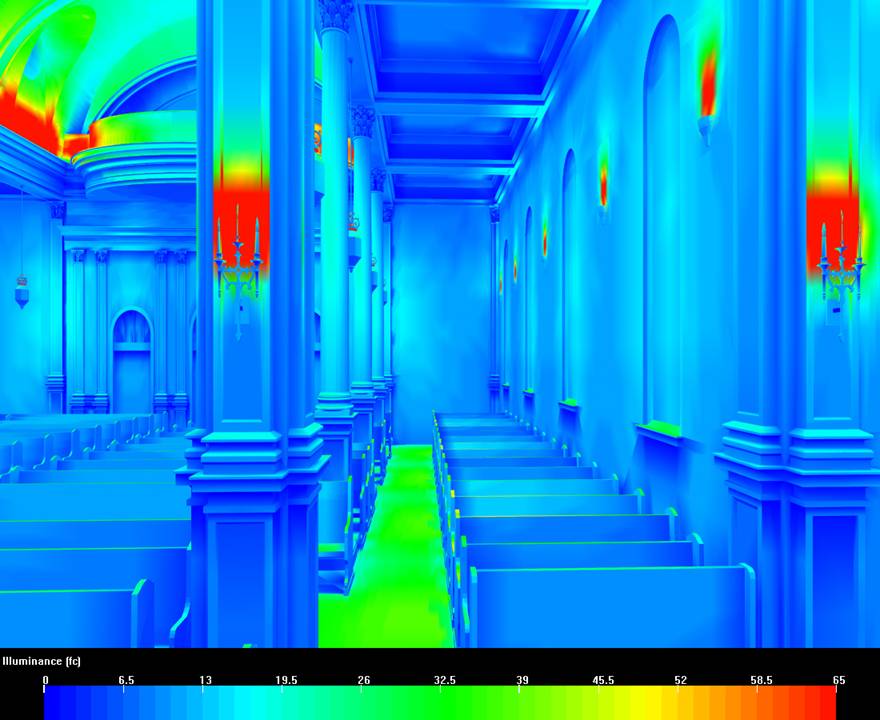

View from left/rear low ceiling area



False Color View shows illuminance keyed to foot candle scale iew from left/rear low ceiling area

Image shows illuminance keyed to foot candle scale



View from left/front low ceiling area

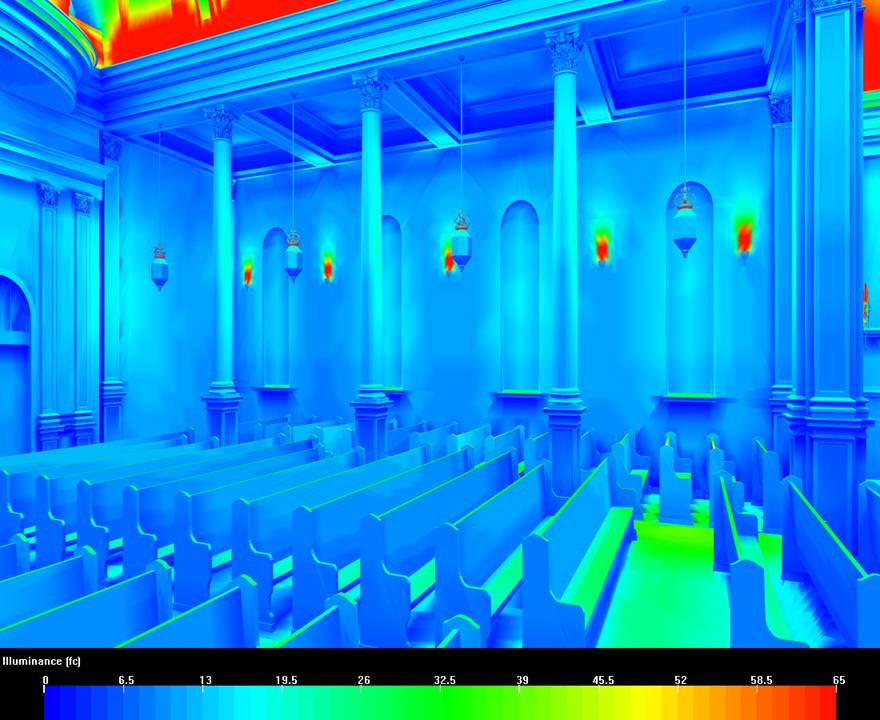

False Color View from left/rear low ceiling area

 Image shows illuminance keyed to foot candle scale



View right to left thru main sanctuary



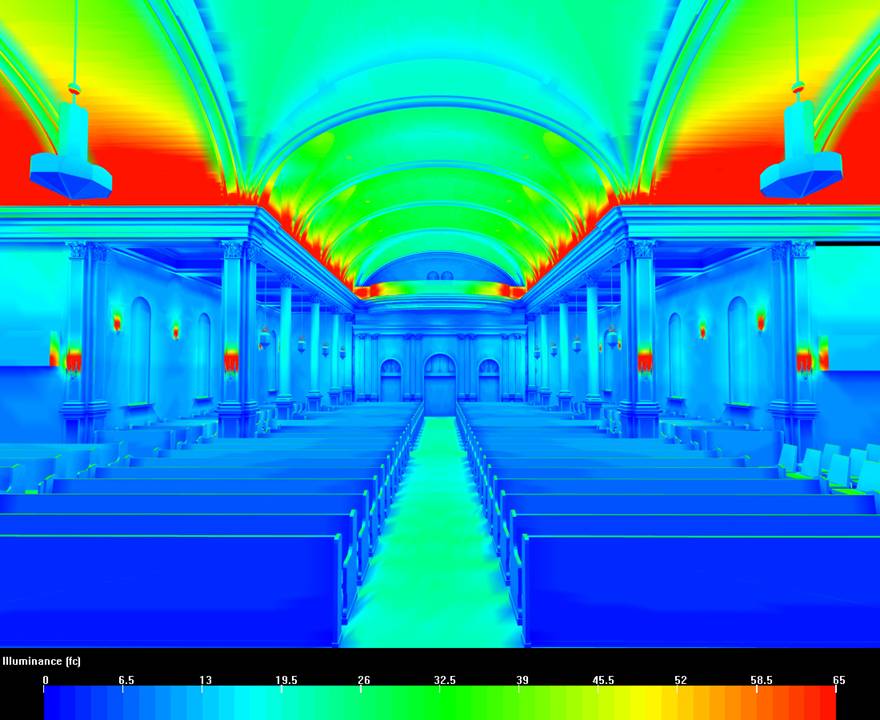

False Color View right to left thru main sanctuary

Image shows illuminance keyed to foot candle scale



View of main entry

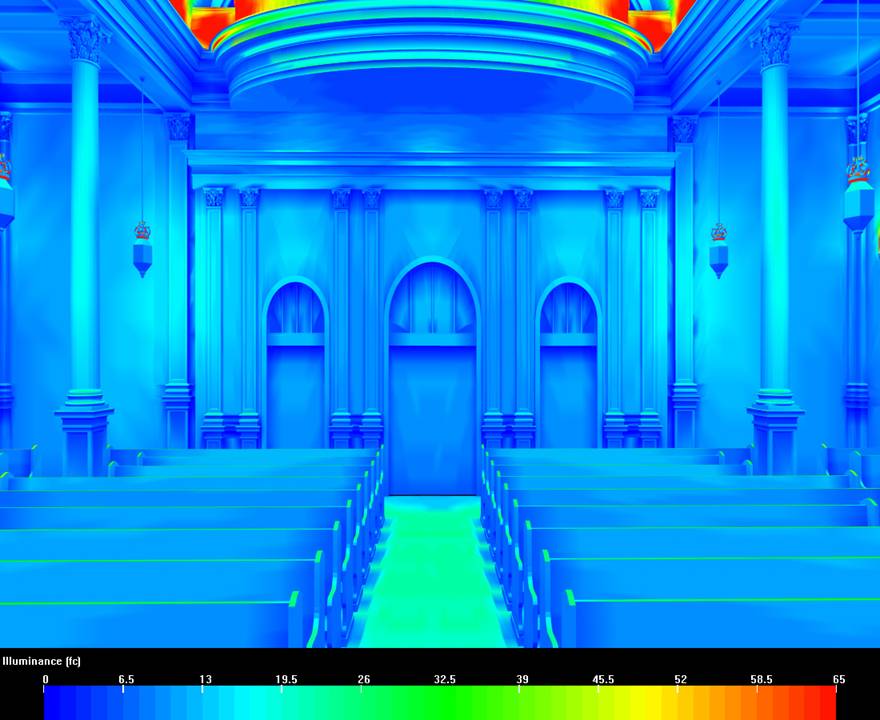

False Color View of main entry

Image shows illuminance keyed to foot candle scale



Section view thru main sanctuary

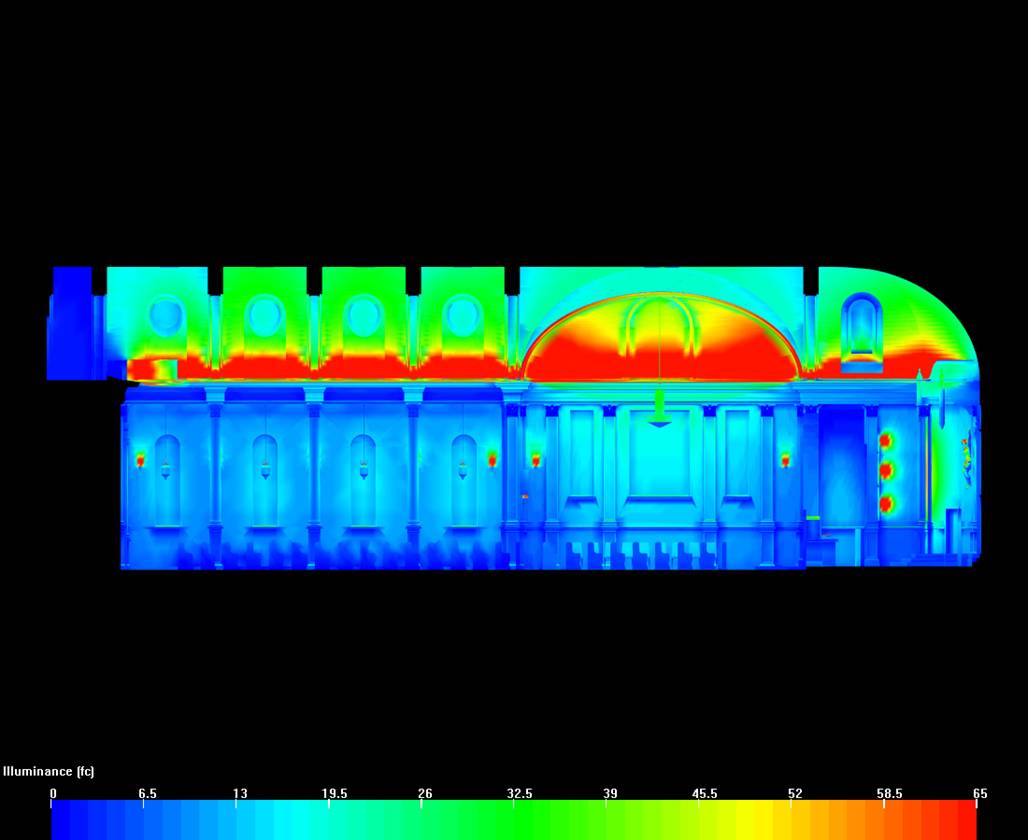

False Color View of section thru main sanctuary

Image shows illuminance keyed to foot candle scale

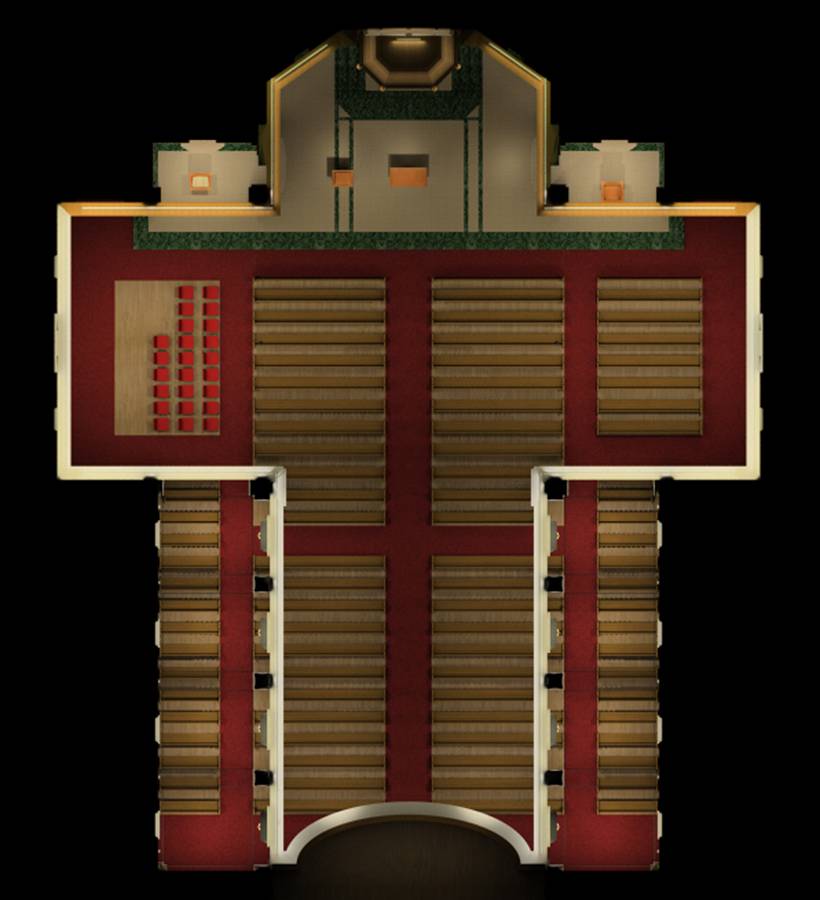

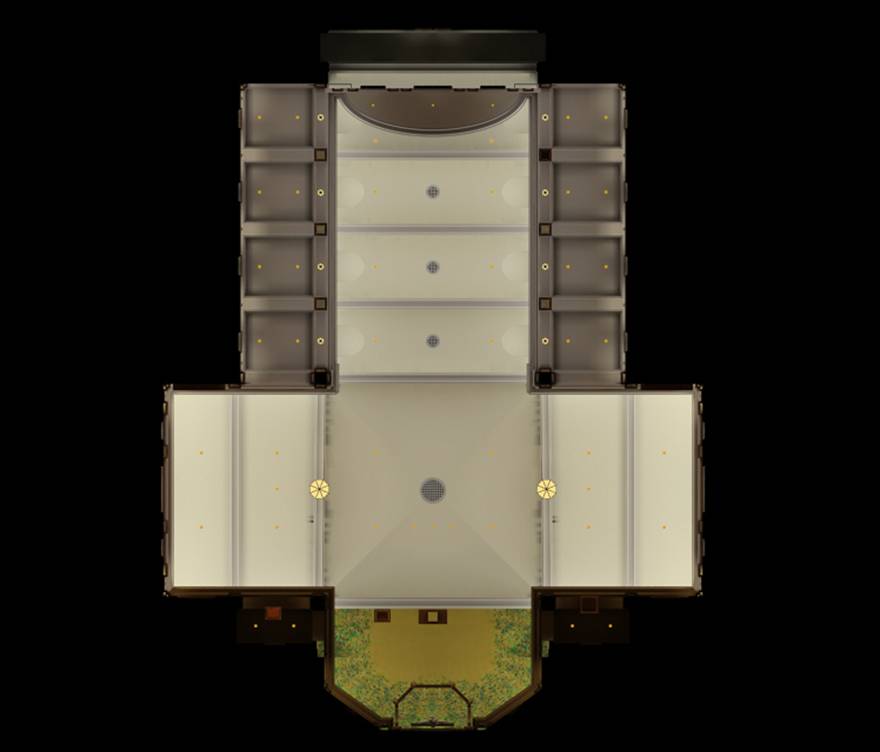

Plan View



False Color  Image of plan view

Image shows illuminance keyed to foot candle scale



Reflected Ceiling View



False Color View of Reflected Ceiling

Image shows illuminance keyed to foot candle scale



View Looking Toward Bible Stand



False Color View Looking Toward Bible Stand

Image shows illuminance keyed to foot candle scale



View Looking Toward Tabernacle



False Color View Looking Toward Tabernacle

Image shows illuminance keyed to foot candle scale
